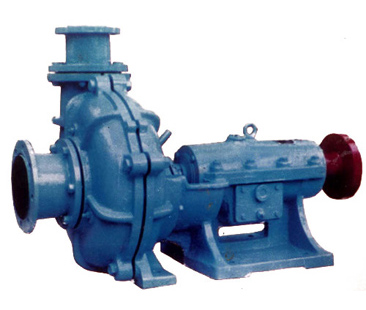

Slurry Pump PNJ Series
Features and use:
This series of pump is single stage, single horizontal centrifugal pump for mud suction. The wet end parts use rubber material, have a long life, apply to deliver corrosive slurry. Impeller sheath and impeller and guard board between them can be adjusted to keep high efficiency work. The shaft sealing form have impeller and packing two pay structure. When the impeller sealing structure, pay import perfusion shall not exceed 5 m high; The packing seal, should work into higher than 1 kg/cm2 pressure of the shaft.Model significance: 2PNJFB
2--Pump export diameter (Inch);
P--rash pump;
J--Rubber;
F--Corrosion;
A--The first improvement;
B--The second improvement

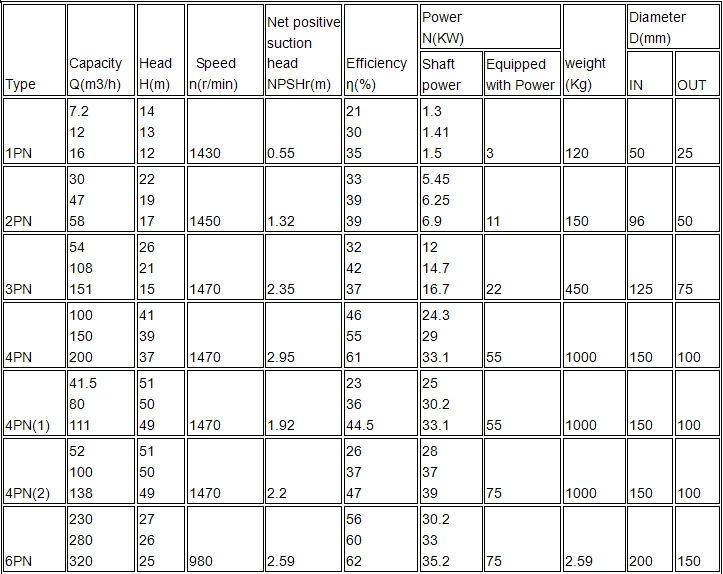

Performance of PN-typemud pump
