Max Power 30KW
Impeller D3147
Head 64 m
Capacity 56 l/second
Overview

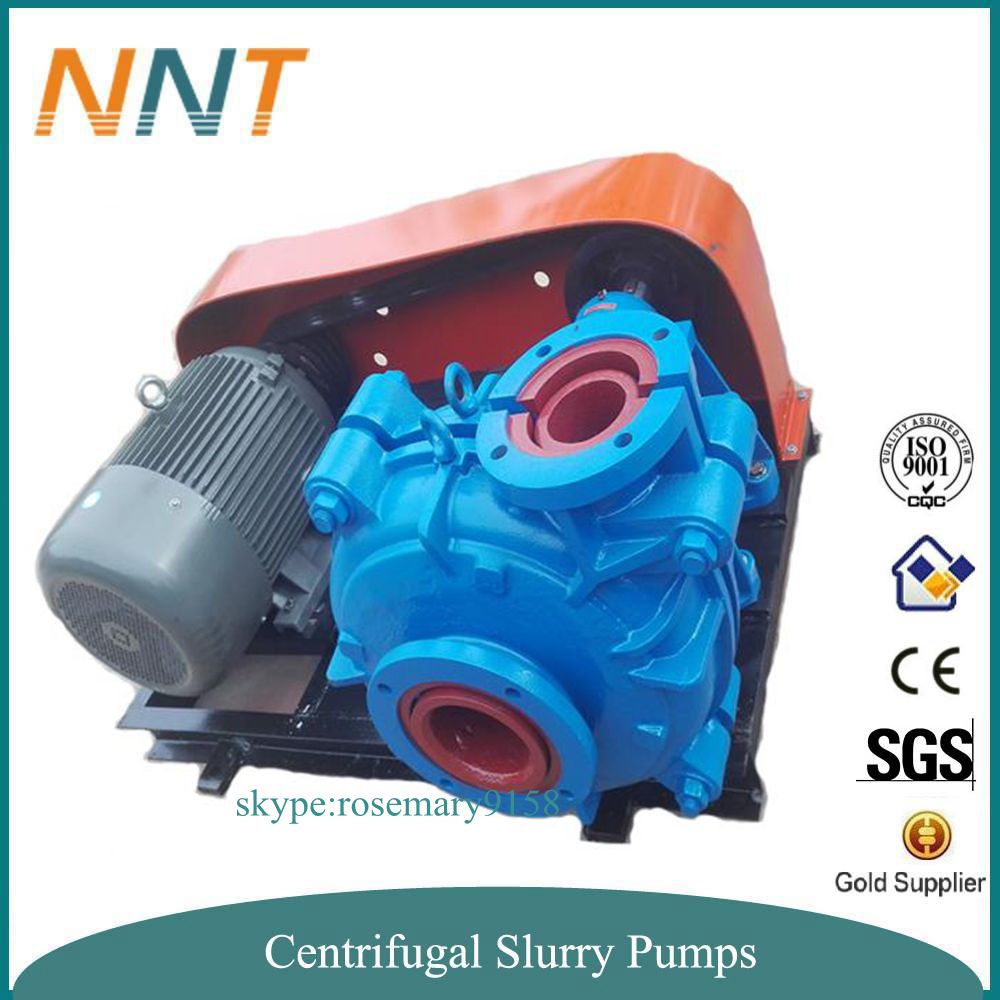

NNT BRAND Type of NH series centrifugal slurry pumps are cantilevered,horizontal,slurry pumps.
1. They are designed for the handling highly abrasive, high density slurry in the metallurgical, mining, coal, power, building material and other industrial departments etc.
2. The pumps of this type also can be installed in multistage series.

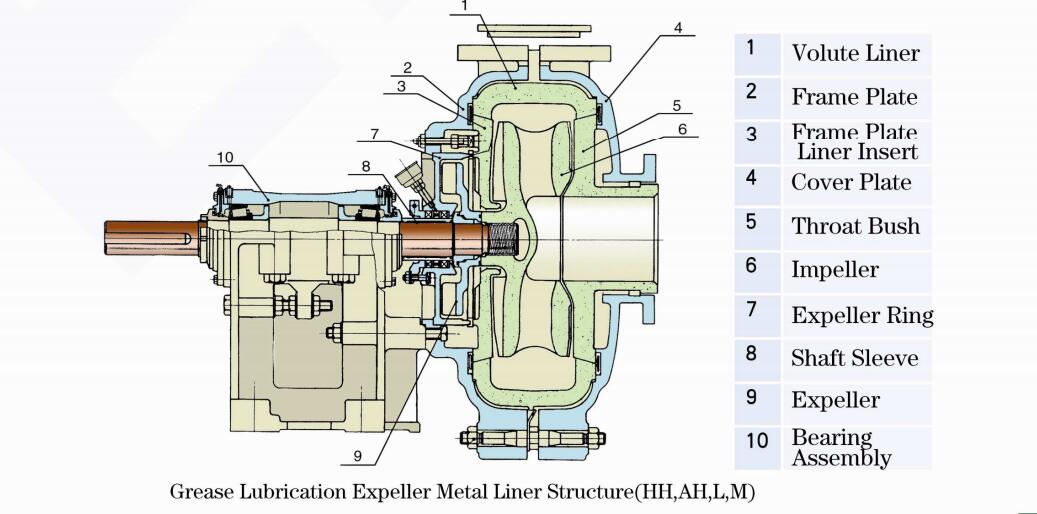

3. The frame plates for type NH centrifugal slurry pumps have replaceable wear-resistant
metal liners or rubber liners.
4. The impellers are made of wear resistant chrome alloy or rubber.
5. The frame plate liner and impeller for HH pump are adoptable of wear-resistant metal only .
6. The shaft seals for type NH centrifugal slurry pumps can be adoptable of gland seal or expeller seal.
Features of the Diesel Fuel Centrifugal High Chrome Drill Mud Slurry Sand Pump
1). Cantilever, horizontal centrifugal slurry pump2). Better wear-resistance and corrosive resistance
3). Frame plate for type pumps have replaceable wear-resistant metal( high chrome alloy ) liners
or rubber liners. Impeller material : high chrome alloy or Natural rubber
4). In allowable pressure range, it can be used in series in stages, and allowable
maximum working pressure is 3.6Mpa
5). Expeller seal, mechanical seal and packing seal are available .Product Name Slurry Pump
6). The discharge branch can be positioned at interval of 45 degrees by request and oriented
to any eight positions to suit installations and applications.
