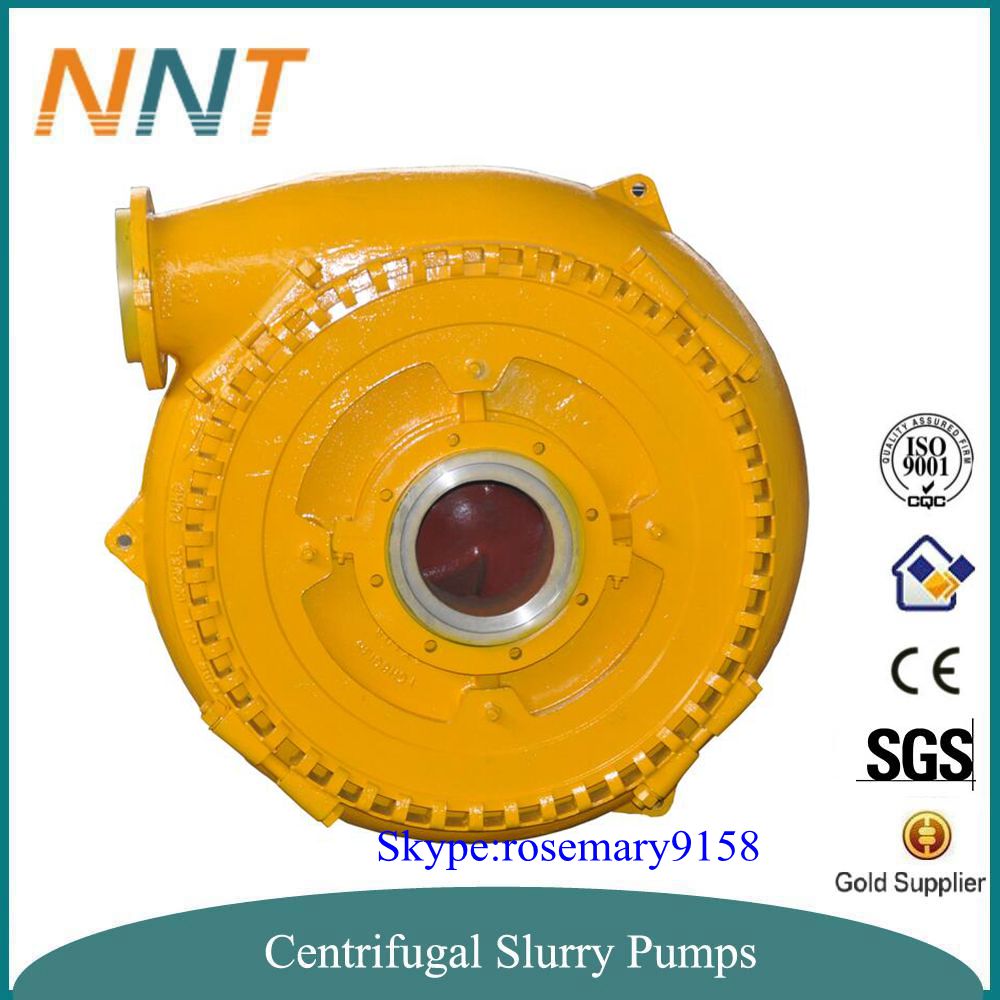

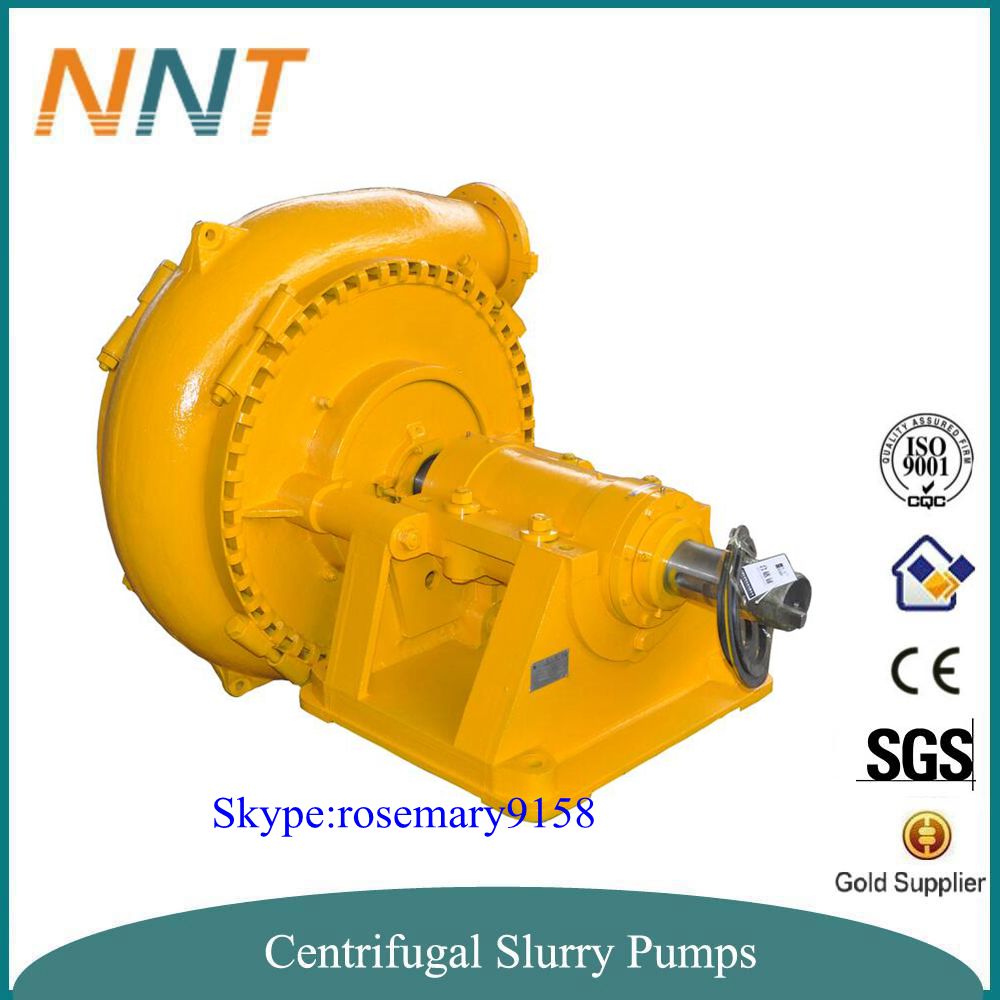

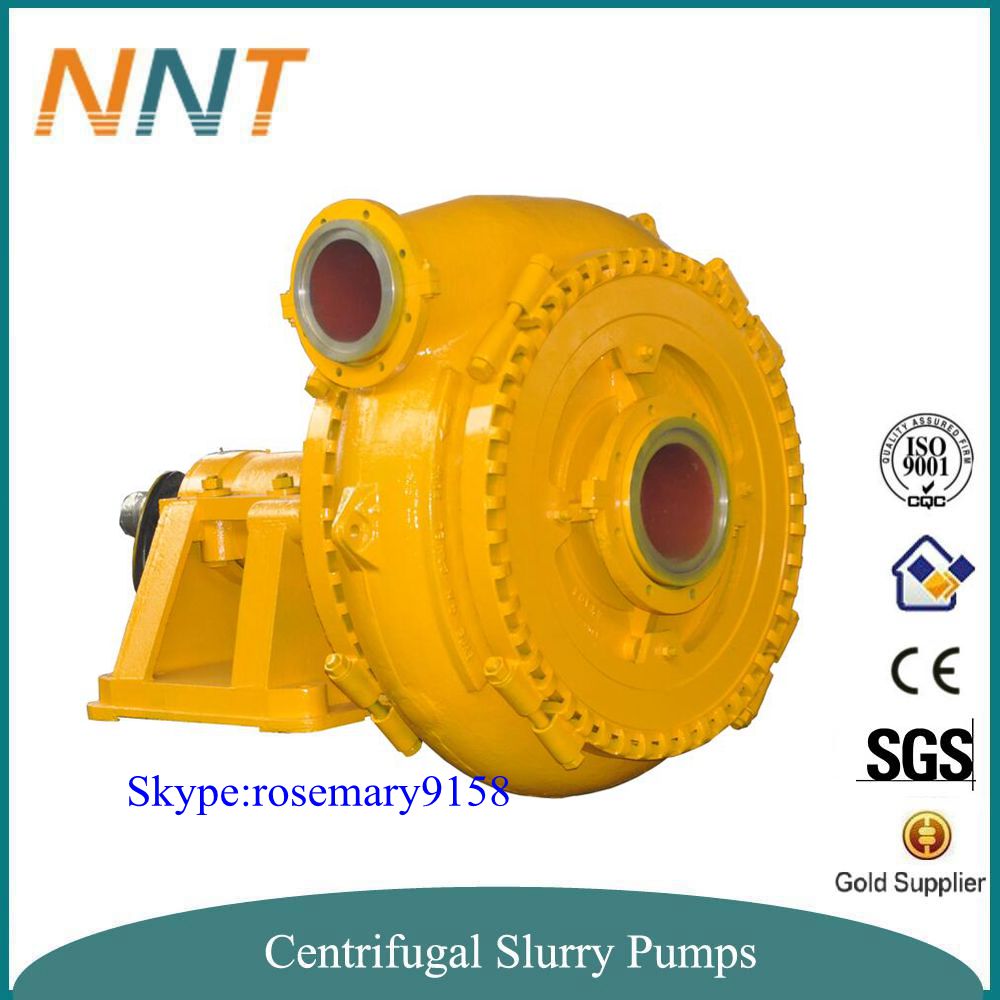

Centrifugal single stage sand slurry pump atlas sand pump rotor
1. Pump Introduction:
1. G(GH) pump is horizontal cantilevered single-casing centrifugal pump.
2. G type pump adopts clamp bands clamping pump body and the cover of the pump
3. the discharge direction of pump can be oriented in any direction of 360.
4. The wet-parts are made of Ni-hard and high chromium alloys.
5. Bearing components use cylindrical structure, easy to adjust the gap between the impeller and pump body.
It can be removed in the way of the whole when maintenance.Bearing adopt oil lubrication.
6. Shaft seal: packing seal, expeller seal,mechanical seal
2. Performance data:
14/12 G—— G
14—— suction discharge diameter (inch)
12—— discharge diameter (inch)
G —— frame form
G —— gravel pump
Discharge size: 4 ~ 24 inches(100mm ~ 610mm)
Flow capacity: up ot 12600 m ³ /h(55440gpm)
Head: up to 92 m(302 foot)
Max allowable particle size: 380mm
| Model |
Outlet Diameter (mm) |
Speed (r/min) | Performance Parameter | Maximum Power (Kw) | Impeller diam (mm) | Max Partic Size(mm) | ||
Flow (m3/h) | Head (m) | Efficiency (%) | ||||||
| 6/4 D-G | 100 | 600-1400 | 36-250 | 7-56 | 50 | 60 | 378 | 82 |
| 8/6 E-G | 150 | 800-1400 | 180-540 | 12-52 | 60 | 120 | 378 | 127 |
| 10/8 F-G | 200 | 500-1000 | 180-820 | 12-56 | 60 | 260 | 533 | 178 |
| 12/10 G-G | 250 | 400-850 | 360-1200 | 12-60 | 65 | 600 | 667 | 220 |
| 14/12 T-G | 300 | 300-700 | 700-2700 | 8-70 | 65 | 1200 | 864 | 241 |
| 6/8 F-GH | 150 | 500-1100 | 520-900 | 18-80 | 70 | 260 | 610 | 140 |
| 10/8 S-GH | 200 | 500-950 | 750-1300 | 20-75 | 70 | 560 | 686 | 180 |
| 12/10G-GH | 250 | 350-700 | 1400-2700 | 10-60 | 70 | 600 | 915 | 210 |
